Steam mainlines require traps in large numbers. The traps should be able to handle startup as well as running loads with a minimum radiation loss.

Forbes Marshall Thermodynamic steam traps are the most widely used and best suited for mainline trapping applications as they satisfy these two needs of the mainline trapping.

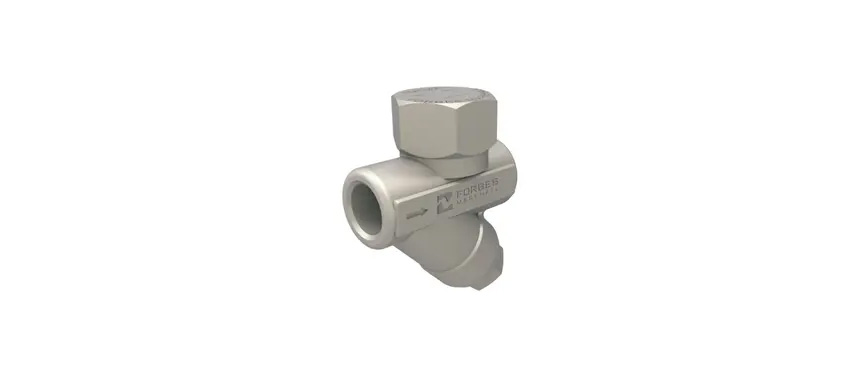

Forbes Marshall Thermodynamic steam traps ensure quick condensate removal and keep a check on water hammer and other condensate related issues. Their compact size ensures that radiation losses taking place through the trap body are minimised. They are robust, efficient and maintenance free. The only moving part in the trap is a disc.

Downloads

Technical Information Sheet
• FMTD25
• FMTD54M
• FMTD60-O
• FMTD64
• FMTD64-S
• FMTD64-U
• FMTD64DM
• FMTD65
• FMTD65-B, FMTD65-A
• FMTD65BDM
• FMTD722-M
• FMTD722-M-F91
• FMTD76-M
