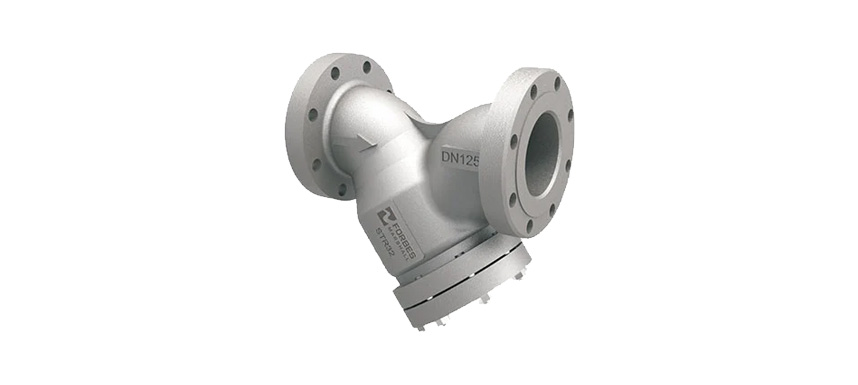

Strainers FMSTR

A steam line can contain certain amount of debris in it. During the course of operations, corrosion, wear and tear and other such factors will lead to occasional release of chips, bur and other particulate materials in the lines. Such debris in the pipe can significantly damage valuable equipment like steam traps, valves, flow meters etc.

A rightly selected strainer helps protect expensive and critical downstream equipment against . Forbes Marshall offers a wide range of strainers suited to different processes across industries. Forbes Marshall strainers are made from quality material in accordance with stringent global standards and are available with optional IBR certification.

Forbes Marshall cast strainers are ideal because of the wide range, availability of different types of end connections as per user demands, ease of on-line maintenance and availability of spares. High screening area ensures there is no or minimal pressure drop even in clogged condition.

Variants

FMSTR31

• Material: Cast Iron
• Sizes/Connections: DN 15, 20, 25, 40 and 50 Screwed BSPT/NPT/BSP

FMSTR51 / FMSTR52

• Material: Cast Steel
• Sizes/Connections: DN 15, 20, 25, 40 and 50 Screwed BSPT/NPT/BSP (FMSTR51) and socket weld ends (FMSTR52)

FMSTR34, FMSTR54, FMSTR54#600

• Material: Cast Iron (FMSTR34) / Cast Steel (FMSTR54 / FMSTR54#600)
• Sizes/Connections: CI: DN 40 up to 200; CS: DN 40 up to 300

FMSTR54-T

• Cast Strainer with a cap/flange fitted with through bolts and nuts
• Material: Cast Steel
• Sizes/Connections: DN 50 up to 300

FMSTR51#600 / FMSTR52#600

• Y-type Forged Steel Strainers
• Material: Forged Carbon Steel
• Sizes/Connections: DN 15, 20, 25 and 40 Screwed BSPT/NPT/BSP and Socket Weld ends (Also available with Class 150, 300, and 600 weld-on flange on request)

FMSTR72 / FMSTR73

• High-pressure strainers for Class 1500
• Material: Forged Alloy Steel (Carbon Steel available on request)
• Sizes/Connections: DN 15, 20, 25 and 40 Socket Weld (FMSTR72) and Butt Weld (FMSTR73) ends
