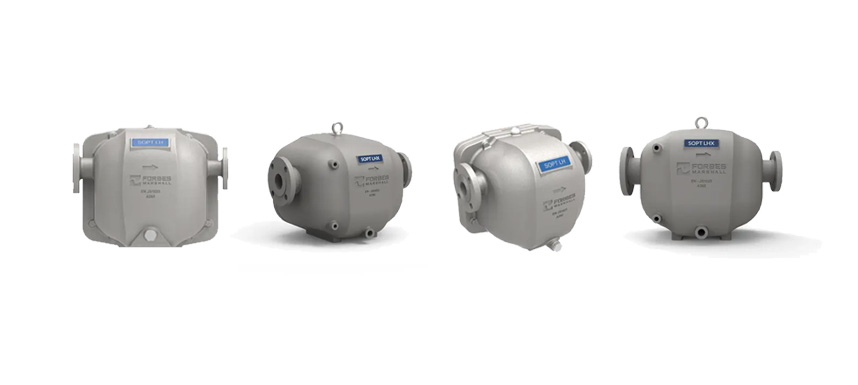

The Forbes Marshall Steam Operated Pump Trap is an innovative product which can work either in trapping or pumping modes automatically, depending on the pressure difference across the trap.
In case vacuum/stall condition arises, SOPT uses the pressure of motive steam to discharge the condensate. Under normal circumstances, it operates like any other float trap. SOPT can significantly improve productivity and product quality of processes prone to stall and vacuum conditions.
Variants
• Sizes: 40 NB X 25 NB
• Body design Conditions: PN16
• Max. Operating Pressure 14 bar g @198°C
• Max. Operating Temperature 12.8 bar g @300°C
• Body design Conditions: PN16
• Max. Operating Pressure 14 bar g @198°C
• Max. Operating Temperature 12.8 bar g @300°C
• Sizes: 20 NB X 20 NB
• Body design Conditions PN10
• Max. Operating Pressure 4.5 bar g
• Max. Operating Temperature 155 °C @ 4.5 bar g
• Body design Conditions PN10
• Max. Operating Pressure 4.5 bar g
• Max. Operating Temperature 155 °C @ 4.5 bar g
• Sizes 50 NB X 40 NB
• Body design Conditions PN16 /ASA CLASS 150
• Max. Operating Pressure 13.8 bar g @198°C
• Max. Operating Temperature 198°C @ 14 bar g
• Body design Conditions PN16 /ASA CLASS 150
• Max. Operating Pressure 13.8 bar g @198°C
• Max. Operating Temperature 198°C @ 14 bar g
A full skid mounted ready to install unit with pipeline accessories and customised to process requirements.
