Steam and Condensate Manifolds is a specially designed product from Forbes Marshall to cater to the steam tracing application. Steam for tracing is supplied to the individual steam tracing circuits with the help of steam supply manifolds. Condensate is evacuated through condensate collection manifolds which have compact tracing traps and is finally transferred to condensate headers through steam operated pumping traps. Conventional manifolds are built by welding a large number of single components together and hence are always prone to leakages.

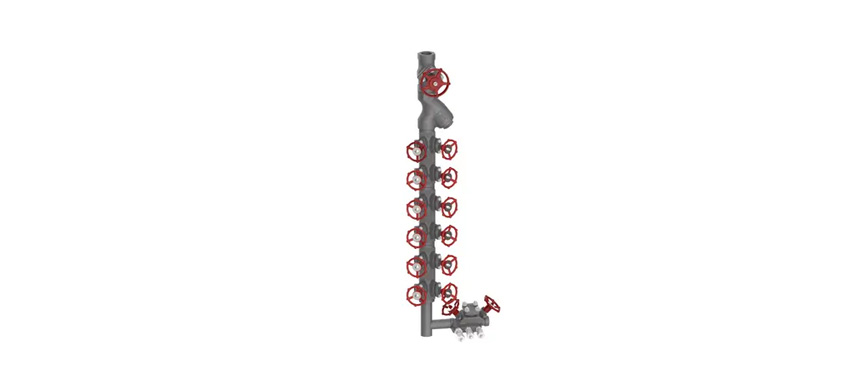

The Forbes Marshall steam and condensate manifold is single forged, compact, weld free, lightweight and uniform in design. Forbes Marshall Steam and Condensate Manifolds eliminate all the disadvantages of conventional manifolds and can be installed without on-site fabrication and testing.

Variants

Downloads

Technical Information Sheet
• FMSCM4X, FMSCM8X, FMSCM12X
