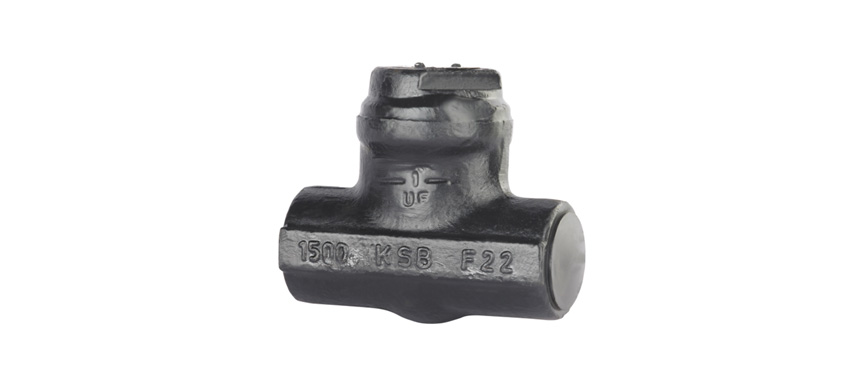

Forged Check Valve PCF 800-4500

The KSB Check Valve 800-4500 Type PCF is an industry-grade, steel valve completely designed to protect pipeline integrity by protecting reverse flow. With its solid design, hard body construction, and provide with international standards, this valve is ideal for demanding services across thermal power plants, refineries, chemical industries, and more.

Made to handle high-pressure and temperature environments, the PCF check valve ensures continuous one-directional flow and removes system damage due to backpressure or flow reversal.

Product Specifications

Valve Type	Forged Check Valve
Pressure Class	ASME 800 / 1500 / 2500 / 4500
Size Range	15 mm to 50 mm (½" to 2")
Body Material	Forged Steel - ASTM A105, A182 F11, F22, F91
Design Standard	BS 5352 / API 602
Bonnet Options	Forged one-piece body Bonnet / Pressure Seal Bonnet
End Connections	Socket Weld - ASME B16.11, Screwed Ends (NPT) - ASME B1.20.1, Butt Weld Ends - ASME B16.25
Face-to-Face Dimensions	ASME B16.10 (Short Pattern)
Testing Standards	API 598 / BS 6755
Trim Options	Trim Nos. 5, 8, 10, 12

Key Advantages

• Prevents Backflow Effectively:: Protects pumps, compressors, and pipelines from damage by allowing only one-way flow.
• Tough Design: : Saves space in high-density piping systems while maintaining high pressure-handling capability.
• Heavy-Duty Steel Body: : Ensures structural integrity and resistance to thermal exhaust and high-stress environments.
• Multiple Bonnet Options: : Choose between bolted or pressure seal bonnet for easier maintenance or higher-pressure resistance.
• Flexible End Connections: : Smooth combination with all standard pipeline configurations.
• Improved for Critical Applications: : Ideal for superheated steam, gas, high-pressure fluids, and corrosive environments.
• Standardized Testing: : Offers strict global standards for safety and performance guarantee.

Downloads

Brochure
• Forged Check Valve PCF 800-4500
