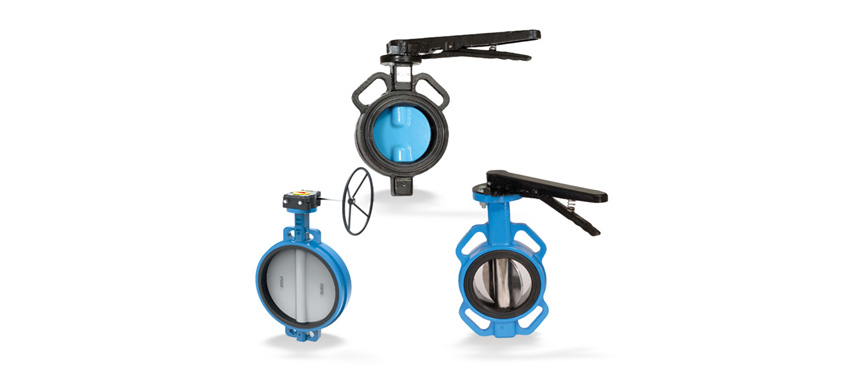

KSB Ecoline Butterfly Valve

The KSB Butterfly Valve is an advanced shutdown and control valve designed for high performance and cost-effectiveness in fluid handling systems. With its solid carry-type construction and easy operation, this valve is great for a wide range of industrial and utility applications. Whether you’re managing water, chemicals, or other process fluids, the KSB butterfly valve offers safe sealing, lightweight design, and minimal pressure release.

Product Specifications

Design Type	Wafer / Lug type Butterfly Valve
Size Range	DN 40 to DN 600
Pressure Rating	PN 10 / PN 16
Body Material	Cast Iron, Ductile Iron
Disc Material	Stainless Steel / Aluminium Bronze / Ductile Iron with Epoxy Coating
Seat Options	EPDM, Nitrile, Viton
Shaft Material	Stainless Steel
Design Standard	EN 593
Face-to-Face	EN 558 Series 20
Testing Standard	EN 12266
Operation	Lever / Gear / Pneumatic / Electric Actuator

Key Advantages

• Tough & Lightweight: Easy to set up even in tight spaces and high-density pipe designs.
• Tight Shutdown: Soft-seated design ensures bubble-tight sealing, minimizing leakage.
• Low Cycle Operation : Reduces key size and operational effort.
• Corrosion-Resistant Options : Stainless steel discs and rubber linings offer higher chemical and water resistance.
• Adjustable Application : Suitable for both on/off and choking functions in process pipelines.
• Safe Performance : Approved with European and international quality and testing standards.
