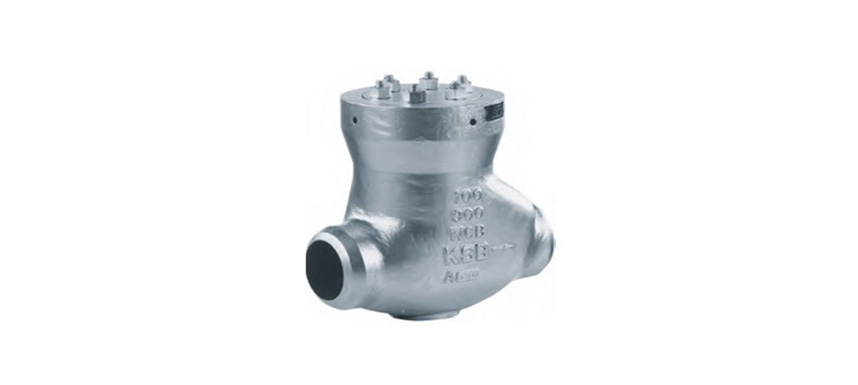

The KSB Swing Check Valve SICCA 900–2500 Type SCC is a high-performance, pressure-seal, specifically made for critical uses in power, oil & gas, and heavy process industries. It effectively prevents reverse flow in high-pressure and high-temperature pipelines, protecting important system components like pumps, compressors, and boilers.
Designed with a forged steel body and pressure seal bonnet, this valve is built to perform under difficult pressure conditions while ensuring smooth flow and long-term safety. Its hard swing disc design minimizes atmospheric instability and provides consistent sealing.
| Valve Type | Swing Check Valve (Non-return) |
| Pressure Class | ASME 900 / 1500 / 2500 |
| Size Range | 50 mm to 600 mm (2" to 24") |
| Body Material | ASTM A105, A182 F22, A182 F91 (forged carbon & alloy steel) |
| Bonnet Type | Pressure Seal |
| Disc Design | Swing Type, Guided Disc |
| End Connections | Butt Weld Ends – ASME B16.25, Flanged Ends (on request) – ASME B16.5 |
| Face-to-Face Dimensions | ASME B16.10 |
| Design Standards | BS 1868 / API 6D |
| Test Standards | API 598 / BS 6755 |
Downloads
Brochure
• Swing Check Valve SICCA SCC 900-2500
