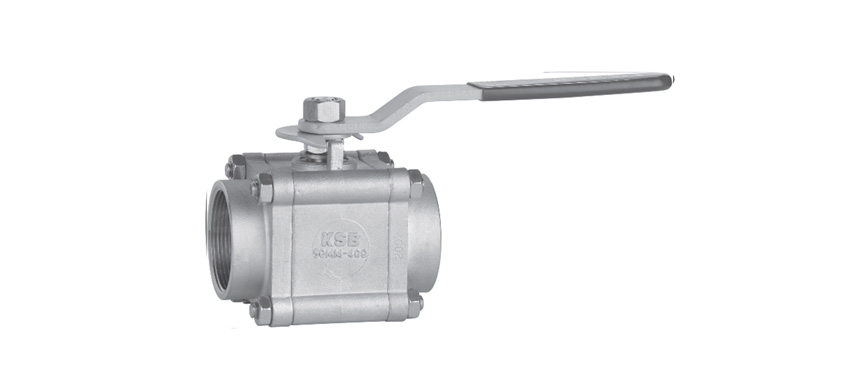

Ball Valve Ecoline BLC-S 400-800

KSB Ball Valve 400-800 BLC-S, a trusted and high-performance valve solution for tough industrial operations. Designed to handle high-pressure environments, this valve combines hard construction, smooth flow characteristics, and easy maintenance, making it an important component in modern process systems.

Whether you're operating in oil & gas, power generation, chemicals, or water treatment, the 400-800 BLC-S series provides stable shutdown control and long-term safety—supported by KSB’s legacy of German engineering quality.

Product Specifications

Valve Type	Three-piece design, Full Bore
Design Standard	EN-ISO 17292, ASME B16.34
Pressure Ratings	Class 400, Class 800
Sizes Available	15 mm to 100 mm (½" to 4")
End Connections	Butt Weld Ends: ASME B16.25, Threaded Ends: NPT/BSP
Body Material Options	WCB, CF8, CF8M, A105
Ball Material	CF8 / CF8M Stainless Steel
Seats	PTFE: for Class 400, RPTFE: for Class 800
Stem	Blowout-proof Stainless Steel
Temperature Range	Up to 200°C
Applications	Suitable for steam, gas, water, oil, and corrosive fluids

Top Advantages of KSB Ball Valve BLC-S 400-800

Full Hole Design: Allows maximum flow capacity with minimal pressure release, improving system effectiveness.
High Pressure & Temperature Resistance: Made to secure against dangerous conditions in critical industrial pipelines.
Leak-Tight Sealing: Advanced PTFE/RPTFE seats provide excellent sealing, reducing chances of leakage.
Blowout-Proof Stem: Built-in safety feature to prevent stem ejection under pressure—ideal for high-pressure uses.
Quick Level Maintenance: Three-piece body allows for easy servicing without disconnect the pipeline.
Flexible Material Options: Multiple body and seat material combinations to handle different fluids and corrosive environments.
Solid & Space-Saving: Smooth design fits well even in tight industrial layouts.
Wide Application Compatibility: Suitable for oil refineries, chemical plants, power plants, and general industrial pipelines.
Follow Global Standard: Built as per international manufacturing and safety standards for global compatibility.
Cost-Effective Lifecycle: Long-duration performance reduces maintenance costs and breaktime.
