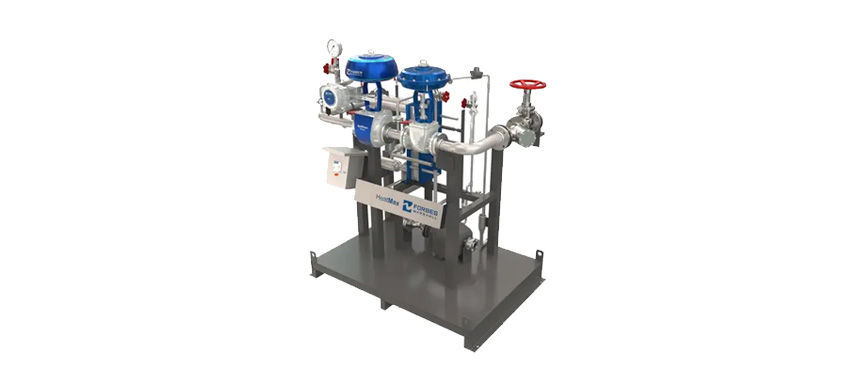

The HeatMax is engineered to ensure reliable delivery of the exact right quantity of hot water at precise temperatures. This is achieved through effective heat transfer, accurate temperature control, efficient condensate removal, and recovery.
A key feature is the system’s integrated online monitoring and control mechanisms, which include a state-of-the-art fouling prediction system. This proactive measure safeguards the equipment’s performance and guarantees sustained high efficiency throughout its operational lifespan. Equipped with inbuilt overheat protection, the HeatMax is delivered in a fully assembled and tested, ready-to-install condition.
Key Technical Specifications
• Max Saturated Steam Pressure: 50.7 Psi(g) or 3.5 bar(g)
• Min Saturated Steam Pressure: 29.0 Psi(g) or 2.0 bar(g)
• Maximum Steam Temperature: 302°F or 150°C
• Maximum Water Pressure: 87.0 Psi(g) or 6.0 bar(g)
• Maximum Water Temperature: 203°F or 95°C
• Max Cold Hydrotest Pressure: 113.1 Psi(g) or 7.8 bar(g)
• Instrument Air Supply: 58.1 – 87.1 Psi(g) or 4.0 – 6.0 bar(g)
• Power Supply Options: 110VAC/220VAC, 60Hz or 230VAC, 50Hz
Variants
Designed for 1″ (25NB) steam lines, handling heat loads from 59,485 to 257,768 BTU/hr (15,000 to 65,000 Kcal/hr)
Designed for 1.5″ (40NB) steam lines, handling heat loads from 259,751 to 654,335 BTU/hr (65,500 to 165,000 Kcal/hr)
Designed for 2″ (50NB) steam lines, handling heat loads from 656,317 to 1,031,073 BTU/hr (165,500 to 260,000 Kcal/hr)
Designed for 2.5″ (65NB) steam lines, handling heat loads from 1,033,056 to 1,586,266 BTU/hr (260,500 to 400,000 Kcal/hr)
Designed for 3″ (80NB) steam lines, handling heat loads from 1,588,249 to 2,577,683 BTU/hr (400,500 to 650,000 Kcal/hr)
Designed for 4″ (100NB) steam lines, handling heat loads from 2,579,666 to 4,084,636 BTU/hr (650,500 to 1,030,000 Kcal/hr)
