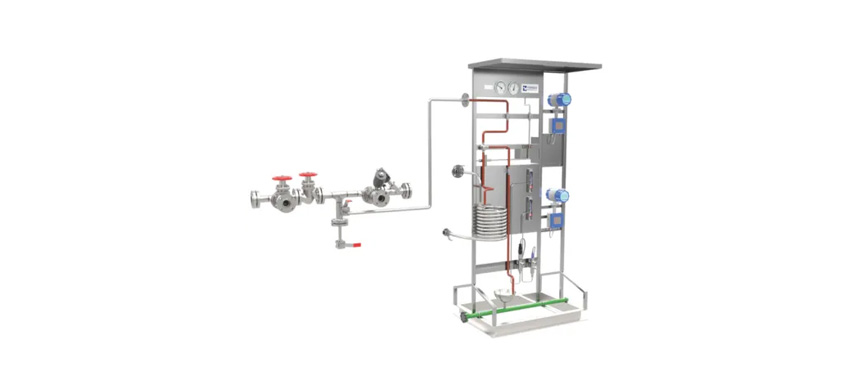

Condensate Contamination Detection Systems (CCDS)

Condensate and flash steam together contain approximately 20% of the heat energy present in steam. Unfortunately, process users are not able to recover their condensate if it gets contaminated or even if there is a possibility of contamination due to leakage in the process vessel or because of any other reasons. Conventionally, contaminated or assumed to be contaminated condensate is drained which leads to wastage of water as well as energy.

Condensate Contamination Detection System is a conductivity and pH based system from Forbes Marshall. CCDS will check the condensate for any contamination. If the condensate is not contaminated, it will be re-utilised again as normal condensate. In case the contamination is detected, CCDS will divert the condensate to a plate heat exchanger for indirect heat recovery post which the condensate is drained.

Pressure and Temperature Limits:
For TDS based CCDS:
• Maximum Condensate Pressure : 3.0 barg at 125°C
• Maximum Condensate Temperature : 125°C at 3.0 barg

For TDS+PH or PH based CCDS (i.e. with Sample cooler )
• Maximum Condensate Pressure : 3.5 barg at 148 °C
• Maximum Condensate Temperature : 148 °C at 3.5 barg
• Minimum Cooling Water Inlet Flowrate : 350 LPH
• Minimum Cooling Water Inlet Pressure : 2.0 barg
• Maximum Cooling Water Inlet Temperature : 35 °C
• Chloride content in Cooling Water : <35 ppm
