Forbes Marshall offers a wide range of CMTDs which come with isolation and bypass provisions to facilitate ease of maintenance. The compact modules are also installed quickly compared to conventional trap assemblies.
Read how CMTD compares with conventional mainline steam trapping stations
Variants
• CMTD42M-S, is a compact
• Thermodynamic trap module
• Designed with an in-built upstream
• Thermodynamic trap module
• Designed with an in-built upstream

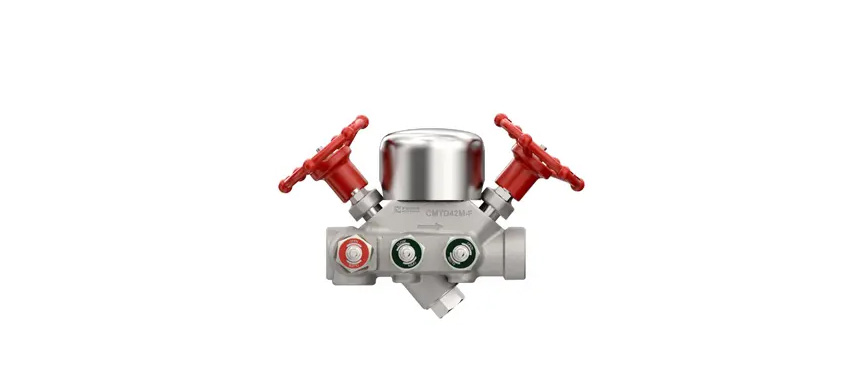

CMTD42M-F, is a compact thermodynamic trap module designed with an in built bypass valve, a trap vent valve and a trap test valve for steam applications upto 42 bar g @425 Deg C. The CMTD42M-F has an integral upstream and downstream piston valve, which isolates the upstream piping of the steam trap.
CMTD62M-S, is a compact thermodynamic trap module designed with an in built upstream isolation valve and bypass valve for steam applications upto 62.5 bar g @482 Deg C
TMO -525 deg C@42.7 barg
TMO -525 deg C@42.7 barg
CMTD62M-F, is a compact thermodynamic trap module designed with an in built bypass valve, a trap vent valve and a trap test valve for steam applications upto 62.5 bar g @482 Deg C. Replaceable trap internals and inbuilt strainer eases inline maintenance. The CMTD42M-F has an integral upstream and downstream piston valve, which isolates the upstream piping of the steam trap.
TMO -525 deg C@42.7 barg
TMO -525 deg C@42.7 barg
CMTD250M, is a compact thermodynamic trap module designed with an in built isolation valve, bypass valve, a trap vent valve and a trap test valve for very high pressure steam applications upto 220 bar @374 deg C.
TMO -550 deg C@80 barg
TMO -550 deg C@80 barg
